Cutting, Copying, and Pasting Objects

You can perform basic editing functions such as copy, cut, and paste commands on one or more selected objects or parts of edited objects.

The clipboard is a part of the system that temporarily stores selected objects when you run the copy or cut command.

The clipboard contents are replaced by the next selection you place there, including a selection placed by using the cut or copy command in another application.

Cut, copy, and paste object commands

Command

Shortcut

Description

Cut

Ctrl+X

Removes a selection and places it onto the clipboard.

Copy

Ctrl+C

Copies a selection to the clipboard.

Paste

Ctrl+V

Places the clipboard contents onto the current page at the center of the screen.

Paste Front

Places the clipboard contents in front of the selected object.

Paste Behind

Places the clipboard contents in the back of the selected object.

Paste in Place

Ctrl+Shift+V

Places the clipboard contents in the same position on another page

Paste and Place

Places the clipboard contents at the point where you click.

Paste MetaObject

Places the clipboard contents copied from another application as MetaObject on the current page at the center of the screen.

Paste Image

Places the clipboard contents as an image, even if the contents are in different formats, on the current page at the center of the screen.

Paste Text

Places the clipboard contents of formatted texts as unformatted texts on the current page at the center of the screen or the insertion point in the text object.

Paste Formatted Text

Places the clipboard contents in the RTF format as formatted texts on the current page at the center of the screen or the insertion point in the text object.

Accessing the cut, copy, and paste object commands

You can access the cut, copy, and paste commands at:

  • The Clipboard panel of the Home ribbon tab.

    Clipboard Panel of the Home Ribbon Tab
  • The object context-sensitive menu.

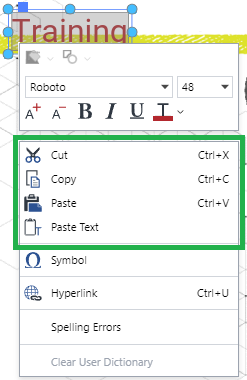

    Clipboard Commands from the Text Object Context-sensitive Menu

Some commands have keyboard shortcuts.

Cutting/copying and pasting objects

To cut/copy and paste one or more objects within the document or across the documents:

  1. Select one or more objects you want to cut or copy.

  2. Either:

    • Press the Ctrl+X or Ctrl+C key combination.

    • Right-click the selected object and click the Cut or Copy command from the context-sensitive menu.

    • Click the Cut or Copy button in the Clipboard panel of the Home ribbon tab.

  3. Go to the page and place where you want to paste the copied objects.

  4. Either:

    • Press the Ctrl+V or Ctrl+Shift+V key combination.

    • Right-click on the selected object and click the Paste, Paste and Place, or object-specific paste command from the context-sensitive menu.

    • Click the top part of the Paste split button in the Clipboard panel of the Home ribbon tab for simple paste.

    • Click the bottom part of the Paste split button and select the paste option from the menu for a specific paste command.

      Paste Split Button Menu on the Clipboard Panel of the Home Ribbon Tab

Cutting/copying and pasting examples

Paste Front

Copy this object

Select this object

Paste Front

Copied Circle Object
Selected Rectangle Object
Circle Paste Front Rectangle

Paste Behind

Copy this object

Select this object

Paste Behind

Copied Circle Object
Selected Rectangle Object
Circle Paste Behind Rectangle

Paste in Place

Copy the circle from Page #1

Paste in Place the circle onto Page #2

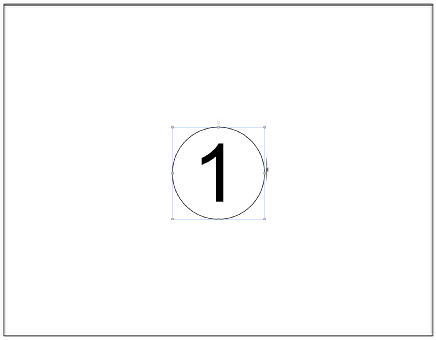

Circle Copied from Page 1

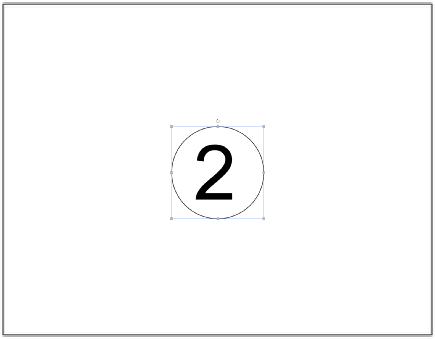

The Circle Pasted in Place on Page #2

Paste Image

Copy vector objects

Paste Image

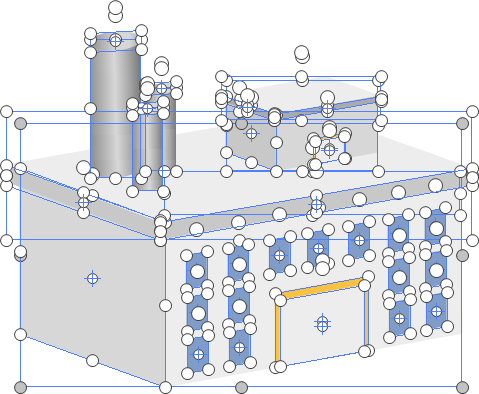

Copied Vector Objects
Vector Objects Pasted as Image

Paste Text

Copy text in RTF

Paste Text

Copied RTF Text

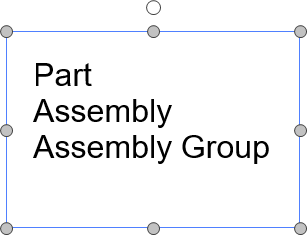

RTF Text Pasted as Simple Text

Paste Formatted Text

Copy text in RTF

Paste Formatted Text

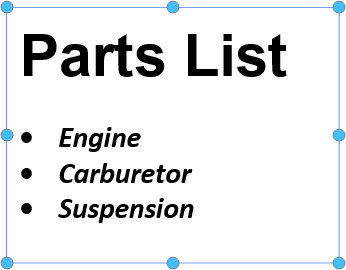

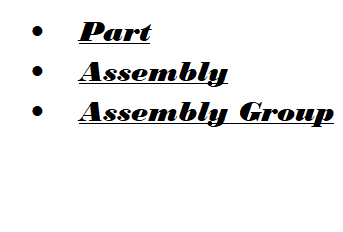

Copied RTF Text
RTF Text Pasted as Formatted Text

Copying and pasting selections in objects

Besides using the cut, copy, and paste commands to place entire objects, you can also use these commands to place selected parts of objects, such as:

  • Text strings

  • Vector segments

Copying and pasting text strings

You can copy and paste text selections made by highlighting text in a text object.

Copy a text piece from a text object

Edit another blank text object

Paste the text piece into the blank text object

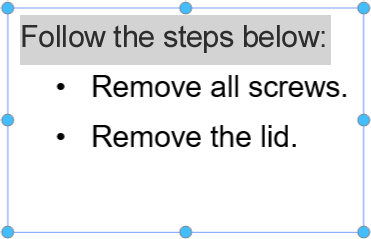

Text Piece Copied from a Text Object

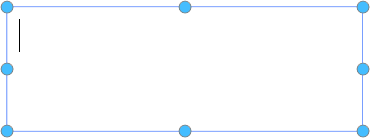

Blank Text Object

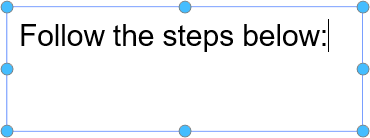

Text Piece Pasted into a Text Object

Copying and pasting vector segments

You can copy and paste segment selections made by selecting anchor points of vector objects in Path Edit mode.

Copy a segment from a vector object

Paste the segment

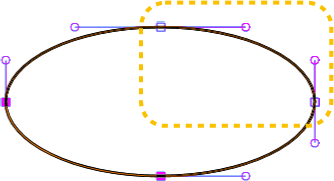

Copied Segment of a Vector Object
Pasted Segment of a Vector Object
