Action Objects in Envision Viewer
- Action object
An object with a page or layer action
Any object can be an action object. Usually, it is a shape or text.
Recognizing action objects
Hovering over objects lets you recognize action objects by the following traits:
The mouse pointer becomes a hand.
A tooltip appears.
Action object tooltip
Each action object has a tooltip that tells what this object does.
The tooltip can be either:
Default
Custom
Interacting with page action objects in Envision Viewer
- Page action object
An object with a page action.
- Page action
An action included in an object that leads to the next, previous, or specific page.

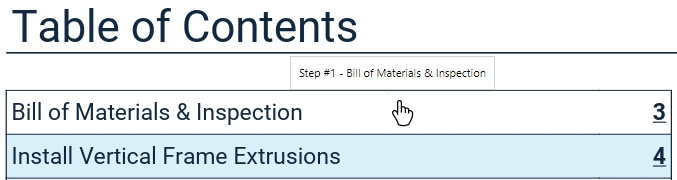

Clicking a page action object leads to a given page.
You can use page action objects to navigate document pages as discussed in Navigating pages with page actions.
Interacting with layer action objects in Envision Viewer
- Layer action object
An object with a layer action
- Layer action
An action included in an object that shows, hides, or shows and hides one or more layers on a page.
Clicking a layer action object toggles the visibility of given layers on a page.
Layer action objects are useful for various document interactivity cases. For example, the author can include them to let you:

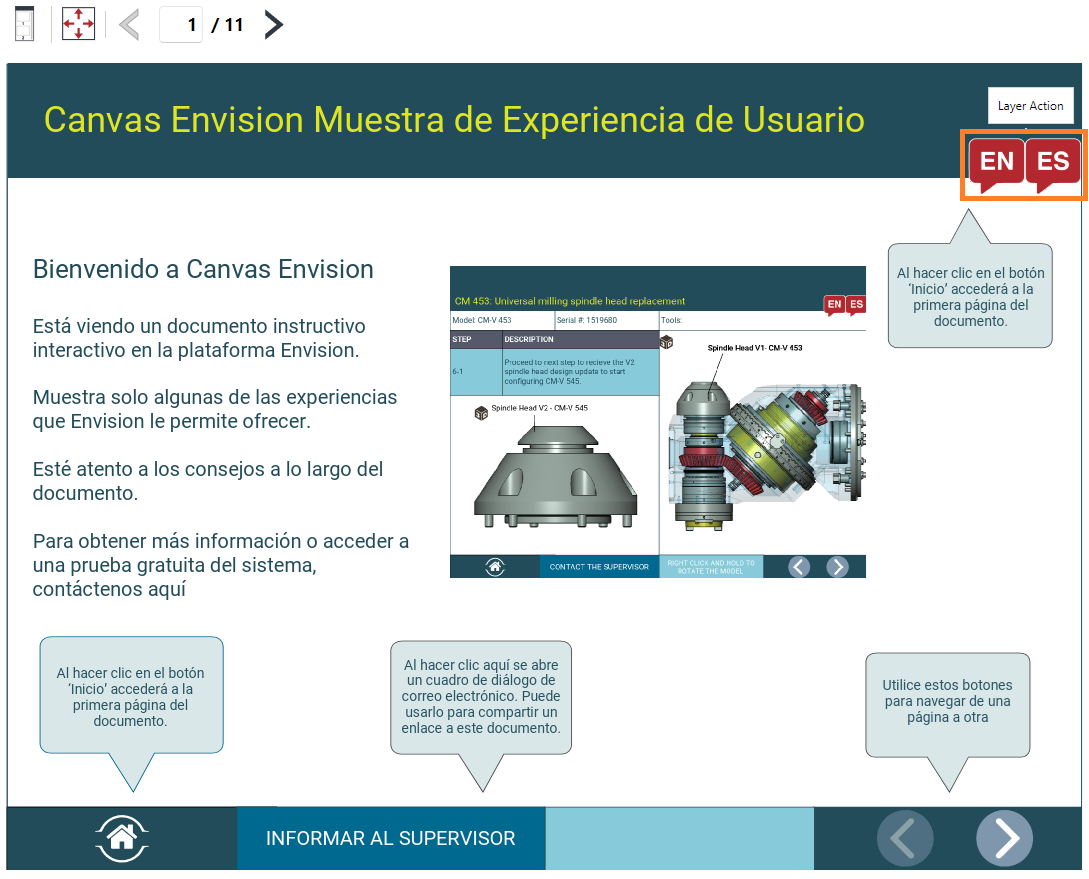

Change the document language.

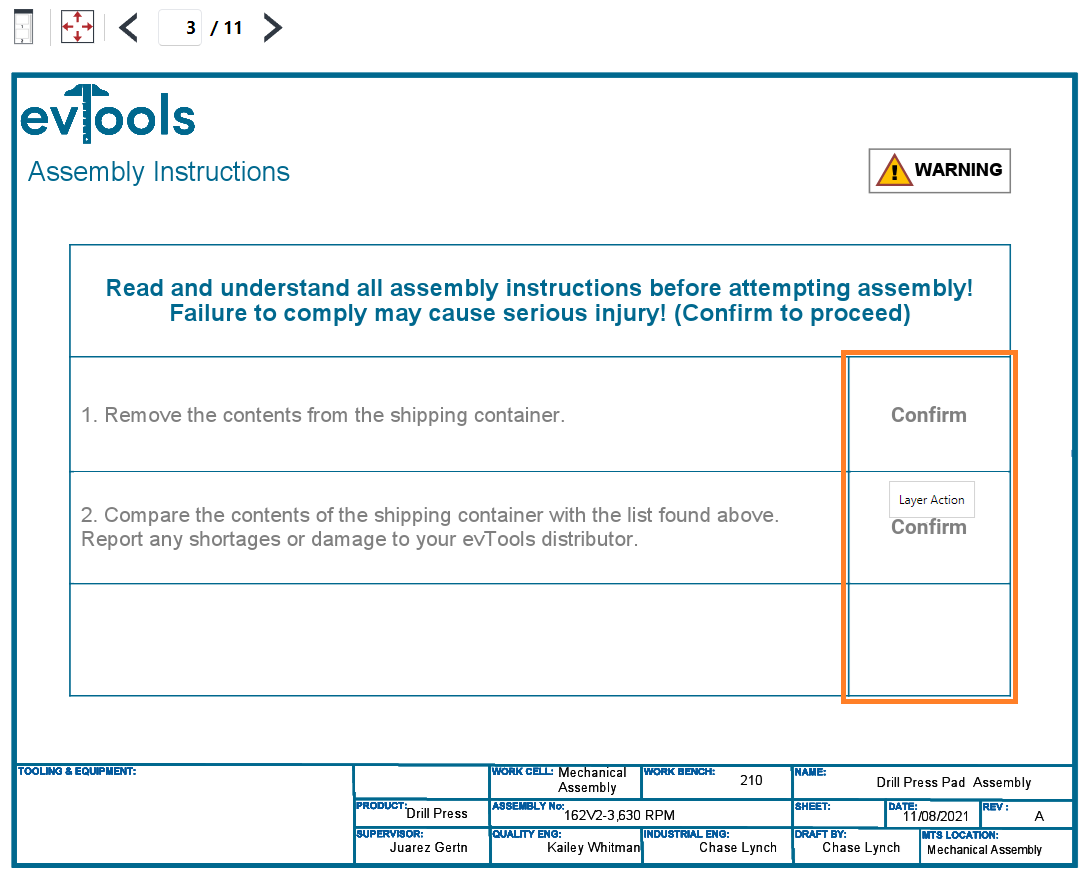

Confirm actions.

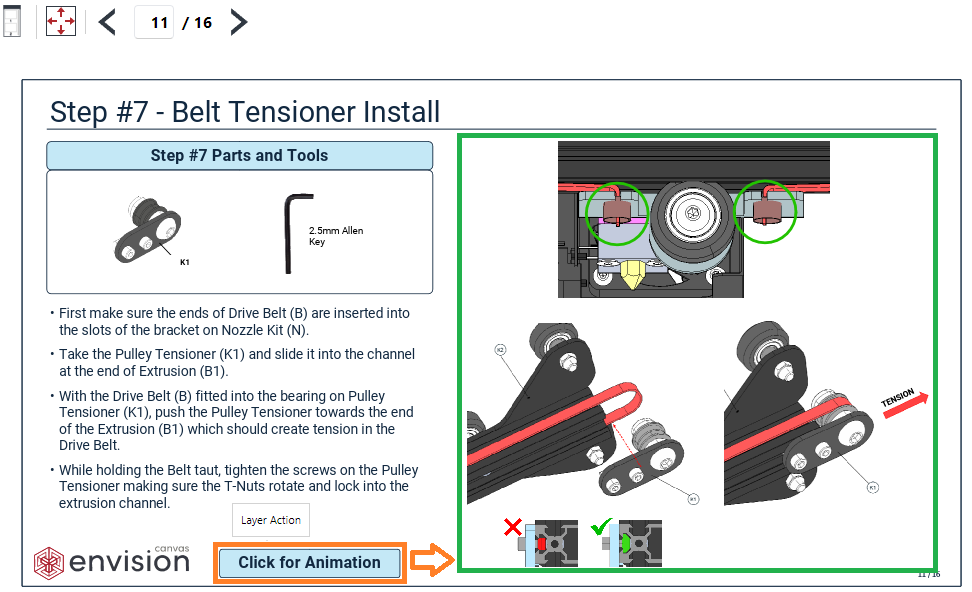

Toggle between different visual objects, such as an image and a 3D model.
